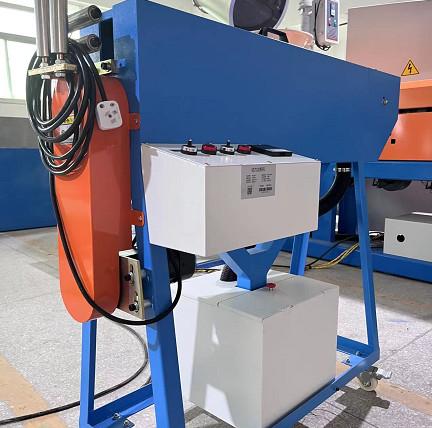

Talcum Core Wire And Cable Powder Machine for Extrusion Line

Name: Talcum Core Wire And Cable Powder Machine for Extrusion Line
Brand: Wiremac
Price: 900 USD

Talcum Core Wire And Cable Powder Machine for Extrusion Line Manufactures

Brand Name : Wiremac

Model Number : /

Certification : /

Place of Origin : China

MOQ : 1

Price : USD900-1800 Unit Price

Payment Terms : T/T

Supply Ability : 45 sets per month

Delivery Time : 30 working days

Packaging Details : /

Wire diameter : ≤Φ25mm

Power : 120W reduction gear motor

Dimension : 1200mm*410mm*1100mm

Weight : 70KG

Center height : 1000mm

Power supply : Single phase 220V

Temperature control table : 80-120 °C

Advantage : High quality

Contact Now

Wire & cable powder machine of extrusion line preheater powder machinery talcum powder core wires extruder machinery

Application

Before extruding the sheath, the surface of the wire is covered with talc powder to improve the peeling.The principle:A spiral blade mixing powder, a brush dust removing and a heating plate are internally provided for heating the talcum powder.

Speficiation

1,Wire dia.: ≤Φ25mm

2,Power:120W reduction gear motor

3,Dimension(mm):1200*410*1100

4,Net Weight:70KGS

5,Center height: 1000mm

6,Power:Single phase 220V

7,Temperature control range: 80-120 °C

Feature

1.It is fully enclosed, no dust is flying, and there is also a dust-falling diversion plastic tube, which enters the dust collecting box to collect the dust,the collected dust can be reuse

2.The talc powder is heated by an electric heating plate, and the heating temperature is adjustable, which can make the copper wire or the core wire dry and smooth

3.Easy to operate and fix

4.The machine foot has four wheels for realizing easy movement

Contact us for more details,pics and videos if you are interested in.
